P Type Sleeve

Item	Do	H	T	V	W	Modulus
	(mm)	(mm)	(mm)	( L )	(Kg)	Sand	Sleeve
P5	50	55	12	0.11	0.8	0.86	1.29
P5L	50	75	13	0.15	1.1	0.94	1.41
P6	60	65	13	0.18	1.3	1.03	1.54
P6L	60	90	13	0.25	1.8	1.13	1.69
P7	70	75	14	0.29	2.1	1.19	1.79
P7L	70	105	14	0.40	2.9	1.31	1.97
P8	80	85	16	0.43	3.1	1.36	2.04
P8L	80	115	16	0.58	4.2	1.48	2.23
P9	90	95	16	0.60	4.3	1.53	2.29
P9L	90	120	16	0.76	5.5	1.64	2.45
P10	100	107	16	0.84	6.0	1.70	2.56
P10L	100	130	16	1.02	7.3	1.81	2.71
P12	120	120	16	1.36	9.8	2.00	3.00
P14	140	140	20	2.15	15.5	2.33	3.50
P16	160	160	20	3.22	23.2	2.67	4.00
P18	180	180	22	4.58	33.0	3.00	4.50
P20	200	200	22	6.28	45.2	3.33	5.00
P22	220	220	25	8.36	60.2	3.67	5.50
P25	250	250	27	12.27	88.3	4.17	6.25
P27	270	270	29	15.45	111.2	4.50	6.75
P30	300	300	35	21.20	152.6	5.00	7.50

A Type Sleeve

Item	D1	D2	H	T	V	W	Modulus
	(mm)	(mm)	(mm)	(mm)	( L )	(Kg)	Sand	Sleeve
A50	50	75	75	12	0.24	1.7	1.06	1.59
A60	60	90	90	14	0.42	3.0	1.27	1.91
A70	70	105	105	14	0.66	4.8	1.48	2.22
A80	80	120	120	16	0.99	7.1	1.70	2.54
A100	100	150	150	18	1.93	13.9	2.12	3.18
A120	120	180	180	19	3.33	24.0	2.54	3.81
A140	140	210	210	22	5.29	38.1	2.97	4.45
A160	160	240	240	22	7.90	56.8	3.39	5.09
A180	180	270	270	22	11.24	80.9	3.81	5.72
A200	200	300	300	25	15.42	111.0	4.24	6.36
A220	220	330	330	27	20.52	147.8	4.66	6.99
A240	240	360	360	27	26.65	191.8	5.09	7.63
A260	260	390	390	29	33.88	243.9	5.51	8.26

B Type Sleeve ( Size : 40~250 )

Item	Do	du	do	Du	H	h	a	b	V	W	Modulus
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	( L )	(Kg)	Sand	Sleeve
B4/7	63	39	43	59	73	61	14	16	0.08	0.61	0.79	1.19
B5/8	73	46	53	70	80	70	14	14	0.15	1.08	0.96	1.44
B6/9	83	52	58	78	94	78	14	14	0.20	1.45	1.06	1.59
B7/10	95	63	71	89	100	87	14	14	0.34	2.43	1.26	1.89
B8/11	103	73	79	99	108	97	26	26	0.45	3.24	1.40	2.11
B9/12	115	83	89	110	120	102	26	26	0.61	4.36	1.55	2.32
B10/13	128	91	97	119	130	117	26	26	0.83	6.00	1.71	2.57

용도적용표

Item	Type	Name	APPLICATION	FEATURES

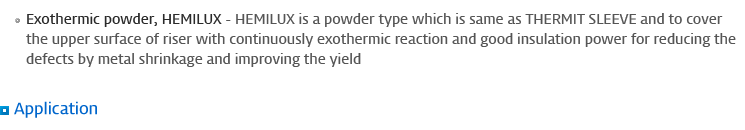

EXOTHERMIC POWDER	Powder	HEMILUX601	Large Iron, Steel and Ingot	Good heat emission and insulation
	Powder	HEMILUX601S	Steel Ingot and Steel Casting	High Quality exothermic compounds
	Powder	HEMILUX602	Iron and Steel Casting	Good exothermic reaction
	Powder	HEMILUX603	Iron and Steel Casting	Economic
	Plate	EXOTOP	Large Iron, Steel and Ingot	Environment Friendly (dustless)
